Hikvision DS-2TD2628T-7/QA Bi-spectrum Thermography IP Bullet Camera, 6.9mm Fixed Lens, White
Upgrade naar de nieuwe Edge-browser of gebruik Chrome, Firefox of Safari om door te gaan. De ADI Global Distribution-site zal na 12 maart 2021 Internet Explorer niet meer ondersteunen. close button
products
ADI a Resideo company ADI a Resideo company

Hikvision DS-2TD2628T-7/QA Bi-spectrum Thermography IP Bullet Camera, 6.9mm Fixed Lens, White

Brand: Hikvision
Artikelnr #:305401692 Model #: DS-2TD2628T-7/QA  Naam: Hikvision DS-2TD2628T-7/QA Bi-spectrum Thermography IP Bullet Camera, 6.9mm Fixed Lens, White
  • 256 x 192 Resolution, 12mu, VOx UFPA, NETD < 40 mK (25 deg C, F1.0)
  • Vehicle/human classification
  • Temperature exception alarm for fire prevention

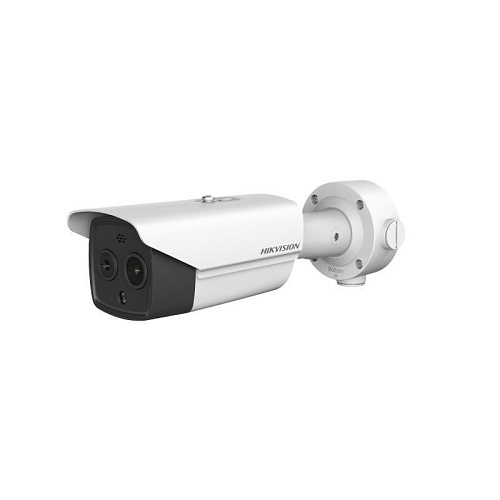

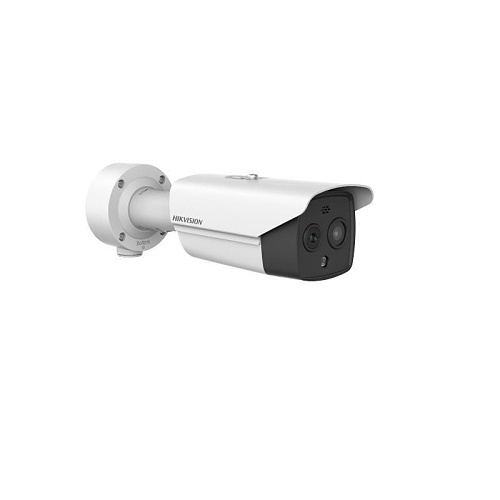

Image of 305401692

Productoverzicht

Algemeen Informatie

Hikvision's Security Thermal Cameras utilize advanced thermal detectors that provide excellent image performance with a high efficiency. They are used for temperature measurement, perimeter protection, and fire detection. Thermal cameras make the invisible IR visible.

Main Features
  • 256 x 192 Resolution, 12mu, VOx UFPA, NETD < 40 mK (25 deg C, F1.0)
  • Vehicle/human classification
  • Temperature exception alarm for fire prevention
  • Support smoke detection algorithm
  • Support smoking detection algorithm
  • Support sun-reflection filter and forklift alarm filter algorithm
  • Image processing technology; linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee
Informatie
Categorie : Bullet Camera's, IP Camera's, Producten, Thermische Camera's, Video

Specificaties

Algemene Informatie

ADI artikel nummer
305401692
Artikelcode fabrikant
DS-2TD2628T-7/QA
Fabrikant
Hikvision
Merk
Hikvision
Product Colour
Wit
Productlijn
HeatPro
Productmodel
DS-2TD2628T-7/QA
Productnaam
Bi-spectrum Thermography Network Bullet Camera
Producttype
Network Camera

Technische Informatie

Connectiviteitstechnologie
Bedraad
Formaat videosignaal
PAL
Gezichtsveld
53.0° ×28.0° (H × V)
HD-recording
Ja
Lenstype
Vast
Maximale beeldsnelheid
30 fps
Maximale Opening
f/1,6
Nachtzichttype
Infrarood/Kleur
Night Vision
Ja

Beeldscherm

Maximale videoresolutie
2688 x 1520
Ondersteunde kleuren
Kleur
Type thermische beeldsensor
Ongekoelde focal plane arrays van vanadumoxide

Belichting

Kortste sluitertijd
1/100000 Second
Langste sluitertijd
1 Second

Camera

Afstand van nachtvisie
30 m

Energie

Ingangsspanning
12V DC, 24V AC

Interfaces/Poorten

Netwerk (RJ-45)
Ja

Lens

Lens meegeleverd
Ja
Maximale brandpuntafstand
6,40 mm

Omgeving

Bedrijfsvochtigheid
95%
Maximale gebruikstemperatuur
65 °C
Minimale gebruikstemperatuur
-40 °C

Opslag

Opslagtype
Geheugenkaart

Overige

IP-beschermingsklasse
IP67

Uiterlijke kenmerken

Gewicht (bij benadering)
1,55 kg
Kleur
Wit
Kleurenfamilie
Wit
Vormgeving
Bullet

Video

Thermische videoresolutie
256 x 192

Overige

Binnen/buiten
Buiten
Impactbeschermingsklasse
IK10
Kenmerken
3D Digital Noise Reduction, Alarm Detection, Audio Compression, Auto Gain Control, Cross Line Detection, Fire Detection, HTTPS Encryption, Human Detection, Rookdetector, Vehicle Detection
