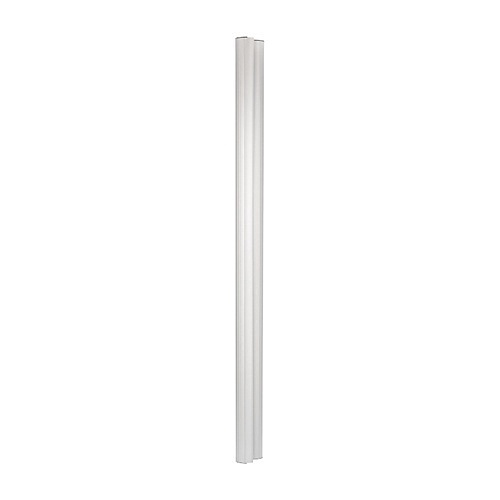

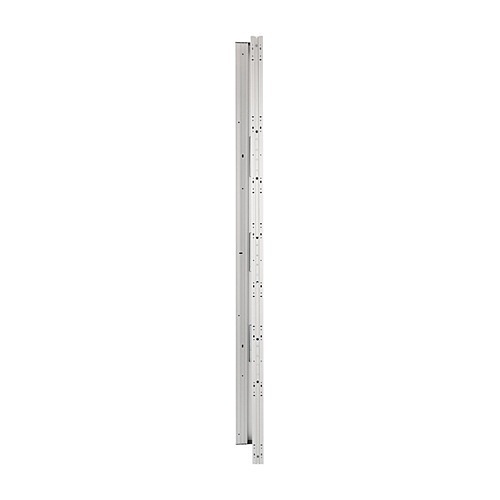

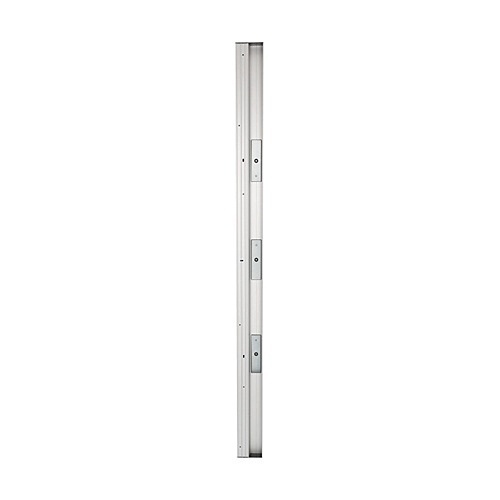

CDVI BO1200RN Architecturaal deurprofiel 1200 kg - 2500 mm - 3 x 400 kg

Brand: CDVI
Artikelnr #:BO1200RN Model #: BO1200RN  Naam: CDVI BO1200RN Architectural BO Series 2500mm Magnetic Pull Handle, 3x400kg Monitored Magnets
  • Architectural pull handle with 3x400kg monitored magnets
  • Fit to new doors or retrofit to existing doors
  • Ideal for high traffic sites that need high holding force and an aesthetic finish

Garantie

Beperkte garantie
10 Jaar

Productinformatie

Afwerking
Satin Anodized Aluminium
Weerstand
1200 kg

Uiterlijke kenmerken

Breedte van slot
126 mm
Diepte van slot
68 mm
Gewicht (bij benadering)
14,7 kg
Hoogte slot
2500 mm
Kleur
Zilver
Materiaal
Satin Anodised Aluminium
Toepassing/gebruik
College, Commercieel, Deur, Glass Door, Hospital, Metal Door, Publiek gebouw, School, Toegangscontrolesysteem, Wooden Door
Vormgeving
Opbouw

Overige

Bijkomende informatie
Standard, options RAL colour|-20°C to 70°C Temperature|12V to 24V DC Operating voltage|480mA at 12V DC/240 mA at 24V DC Current|3 x 400 kg Holding Force
Compatibiliteit
Electro-Magnetic Locks
Kenmerken
Electromagnetic Handle/Architectural Handle, Retrofit Or New Build, Surface Mount Architectural Handle
Milieuvriendelijk
Ja
