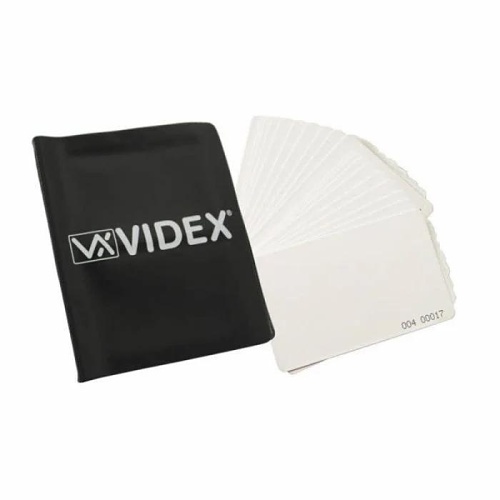

A selection of modular 4000 series Wiegand and Mifare proximity reader modules are available that connect to an access control CPU and can also be incorporated as part of an audio or video door entry system. The 4849PP is a Wiegand 26bit proximity reader for use with the SC24000 standalone 2 door proximity controller or the Portal Plus access control system (PPCU2 control cabinets). The reader has resin potted electronics keeping it sealed from the elements. With RFID, EM4102/EM4200 technology and an operating frequency of 125kHz it has a read range between 8 - 10cm. It is compatible with PBX1E fobs and PBX2 cards. The 4849MI is an offline standalone MiAccess Mifare proximity reader, part of the MiAccess system, and is capable of reading Mifare Classic 1K and 4K cards and fobs. It can be programmed and configured directly via the micro-USB port on the rear of the reader using either the PROA-MS or PROH-MS PC software. The reader has unlimited user (fob/card) capacity with up to 3500 events logged which can be retrieved directly via the micro-USB port or using a programmed ‘events collect card'. It has a read range of up to 6cm with an operating frequency of 13.56MHz. It also has a switched 0V push to exit input, a dry contact relay (COM, NO and NC), tamper connection and RS485 bus wires for remote relay connection to an RU2, DINRTT or RTT device. The 4849WS4 is a Mifare proximity reader with RS485 bus for use with the WS4 Web Access System, and is capable of reading Mifare Classic 1K and 4K cards and fobs. Programming configuration and setup is carried out via the RS485 bus connection to a local WS4 control cabinet and using the WS4 Web Access software. Remote connection to the WS4 Web Access software is achieved using a standard web browser (Chrome, Safari, Opera, Microsoft Edge or Firefix) where the system can be accessed and managed from anywhere in the world with an internet connection. All readers are available in a mirror stainless steel finish (suffix /S), a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL). They are also compatible with the full range of 4000 series surface and flush back boxes.4849PP - 4849MI - 4849WS4 - Readers - Substitute /M with /BL for gun metal grey finish e.g. 4849MI/BL. Substitute /M with /S for mirror stainless steel finish e.g. 4849WS4/S.EM Fobs and Cards - Mifare Fobs and Cards - .
