Algemene Informatie

ADI artikel nummer

SRW12UHD

Artikelcode fabrikant

SRW12UHD

Fabrikant

Tripp Lite by Eaton

gewicht

45.9 kg

Merk

Eaton

Productlijn

SmartRack

Productmodel

SRW12UHD

Productnaam

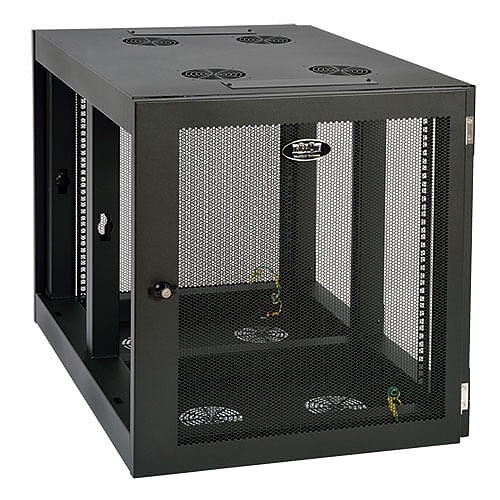

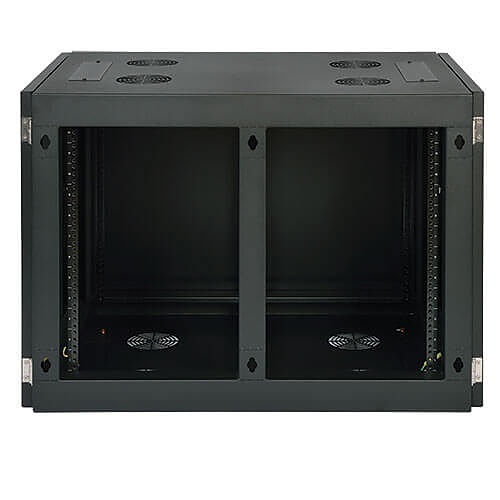

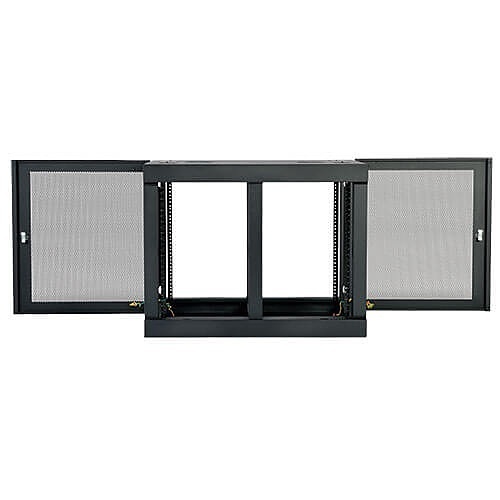

SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet

Producttype

Rack Cabinet

Certificaten

CE-markering

Compliant

Garantie

Beperkte garantie

5-Year

Productinformatie

Montage

Wandmontage

Uiterlijke kenmerken

Breedte

629,1 mm

Diepte

919,9 mm

Hoogte

672,08 mm

Kleur

Zwart

Maximaal draagvermogen

226.8kg

Rekbreedte

482,6 mm

Rekhoogte

12U

Toepassing/gebruik

Back Offices, Classrooms, Network Wiring Closets, Retail Locations

Overige

Inhoud verpakking

Owner’s manual

,

SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(20) 12-24 screws
(2) Keys

Kenmerken

Convenient ports with removable covers allow cable routing through top and bottom, Extends less than 25 in. from the wall while housing 1U servers, UPS systems, battery packs, network switches and patch panels up to 32.5 in. deep, Houses EIA-standard 19 in. rack equipment in 12U of space, Maximum load capacity of 500 lb (226.8 kgs), Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way, Ships fully assembled for quick installation, Sides and front lock securely to help prevent damage, tampering or theft, Vented panels allow generous airflow that keeps equipment cool, Vertical mounting rails adjust in 7/8 in. increments, Wall-mounting holes spaced 16 in. apart for standard wall stud placement

Land van herkomst

CN

Milieucertificering

WEEE

Milieuvriendelijk

Ja

Eaton SRW12UHD SmartRack 12U heavy duty laagprofiel server-diepte wandmontage kleine rack-behuizing, Zwart

Product documentatie
